IntraOs

Digital-Ready
Dental Intraoral X-Ray Unit

IntraOs 70 is a traditional dental X-ray
designed to face the most demanding needs
of the dental profession both when using
traditional films and digital imaging receptors.
The main feature of the system is the great
energy offering obtained by combining the
voltage potential of 70kVp and the anodic
current of 7mA with a wide range of exposure
times, from 60ms to 3.2sec.

The possible selections of technical
parameters satisfies all the needs of both
dental offices using traditional films with
chemical processing as well as those
equipped with low-radiation dose digital
detectors.

The small focal spot, the beam limiting
device, and the penetration power of a 70kVp
radiation beam, make the best combination
of technical parameters which grant sharp
images with good radiographic contrast for
optimal detail perception.

Features such as grid control action, and
compensation of mains fluctuations, assure
consistent film blackening in a wide range of
operating conditions, thus granting high
diagnostic quality shots.

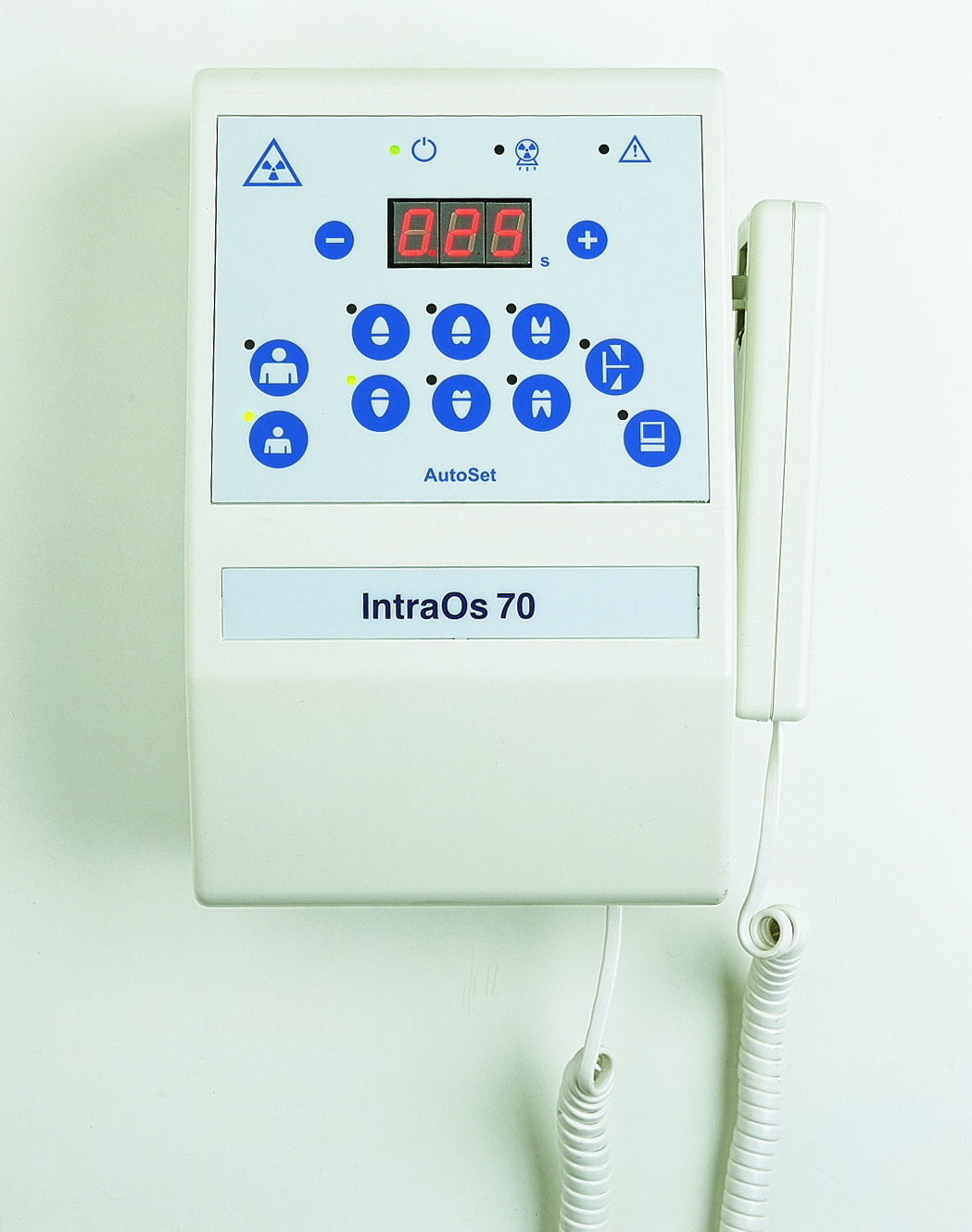

This system comes equipped with the
AutoSet timer, offering the best flexibility of
use. The AutoSet timer has a flat keyboard
and is controlled by a microprocessor. It
features an anatomical selection of technique

factors, programmed selections according
to tooth type and patient size, manual
override (plus, minus) if required, digital
display of selected values, dose reduction
for digital receptors, pre-settings of film
sensitivity, automatic compensation of line
voltage fluctuations, full protection against
tube over-heating with accurate cool-down
control, and X-ray cut-off with "dead-man"
control switch functionality.

Long Reach Double Positioning Arm
The long reach scissors arm moves effortlessly through a wide area, yet folds
compactly when not in use. The scissors arm allows ease of positioning and drift
free stability.
Standard Extension Arm 70cm (Wall Mounted version)
Standard Extension Arm provides a total inside reach of 65"
Long Extension Arm 90cm (Wall Mounted version)
Standard Extension Arm provides a total inside reach of 72.8"
Short Extension Arm 45cm (Wall Mounted version)
Standard Extension Arm provides a total inside reach of 55"
BlueX IntraOs (optional Wall Mount, or Mobile Version)
Conditions in your practice will dictate where to perform x-ray examinations. With the
IntraOs you can choose the option that best fits your needs:

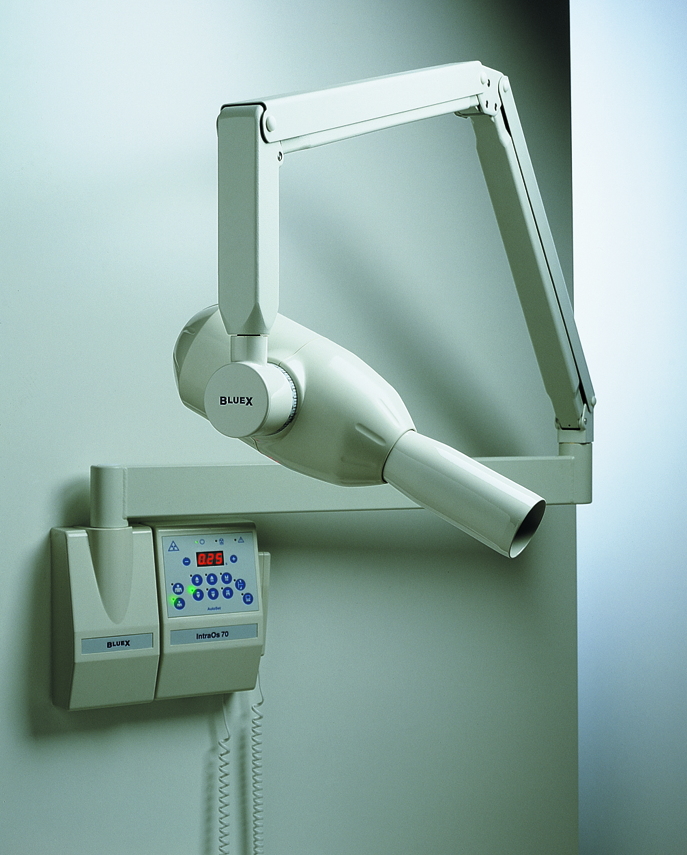

Wall Mount--Wall mounted directly in the x-ray room or directly in the treatment room.
Wall mount can be stationed for side-by-side operatory stations. Optional placing of
Timer: Timer can be mounted either inside or outside of operatory.

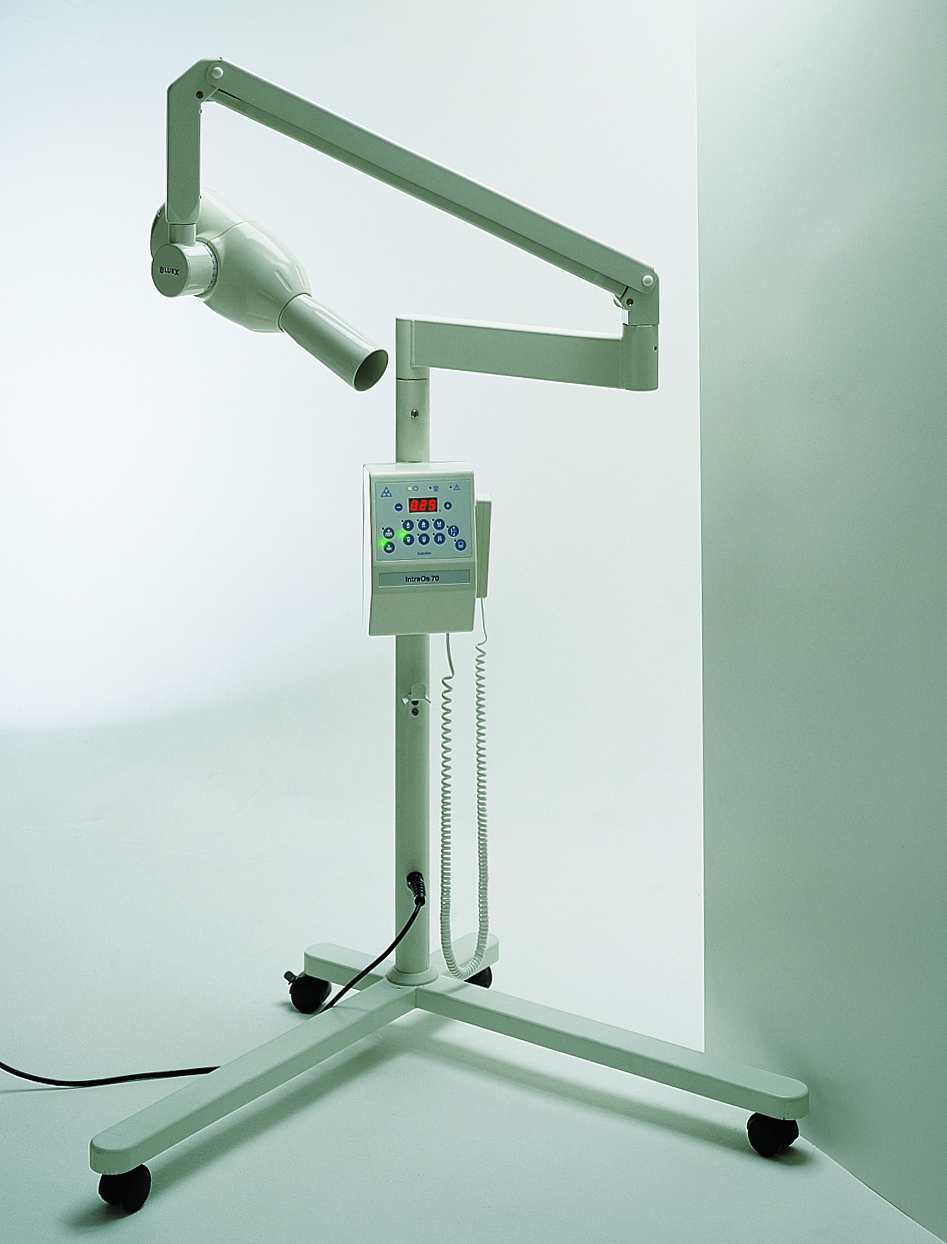

Mobile Stand--Mobile unit that allows reaching separate operatory stations on a
sturdy and stable rolling stand.

TECHNICAL DATA

Tubehead
