| PantOs 16 XP Pan/Ceph & PantOs DG XP |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
The PantOs DG XP is a digital panoramic
X-ray system of new conception, equipped
with a specific detector for diagnostic imaging.
The particular features of sensitivity and
resolution assure consistent radiographic
quality. The use is straightforward, with
automatic image acquisition displayed on a
computer screen. Once displayed the image
can be processed and magnified as needed
to outline the most important details.
X-ray system of new conception, equipped
with a specific detector for diagnostic imaging.
The particular features of sensitivity and
resolution assure consistent radiographic
quality. The use is straightforward, with
automatic image acquisition displayed on a
computer screen. Once displayed the image
can be processed and magnified as needed
to outline the most important details.
| CEPHALOMETRIC |
The cephalometric version is available with a
lateral arm to take side (Latero-Lateral) or
frontal (Antero-Posterior) radiographs, of the
skull, and wrist. A soft tissue filter is available
with Latero-Lateral procedures.
lateral arm to take side (Latero-Lateral) or
frontal (Antero-Posterior) radiographs, of the
skull, and wrist. A soft tissue filter is available
with Latero-Lateral procedures.

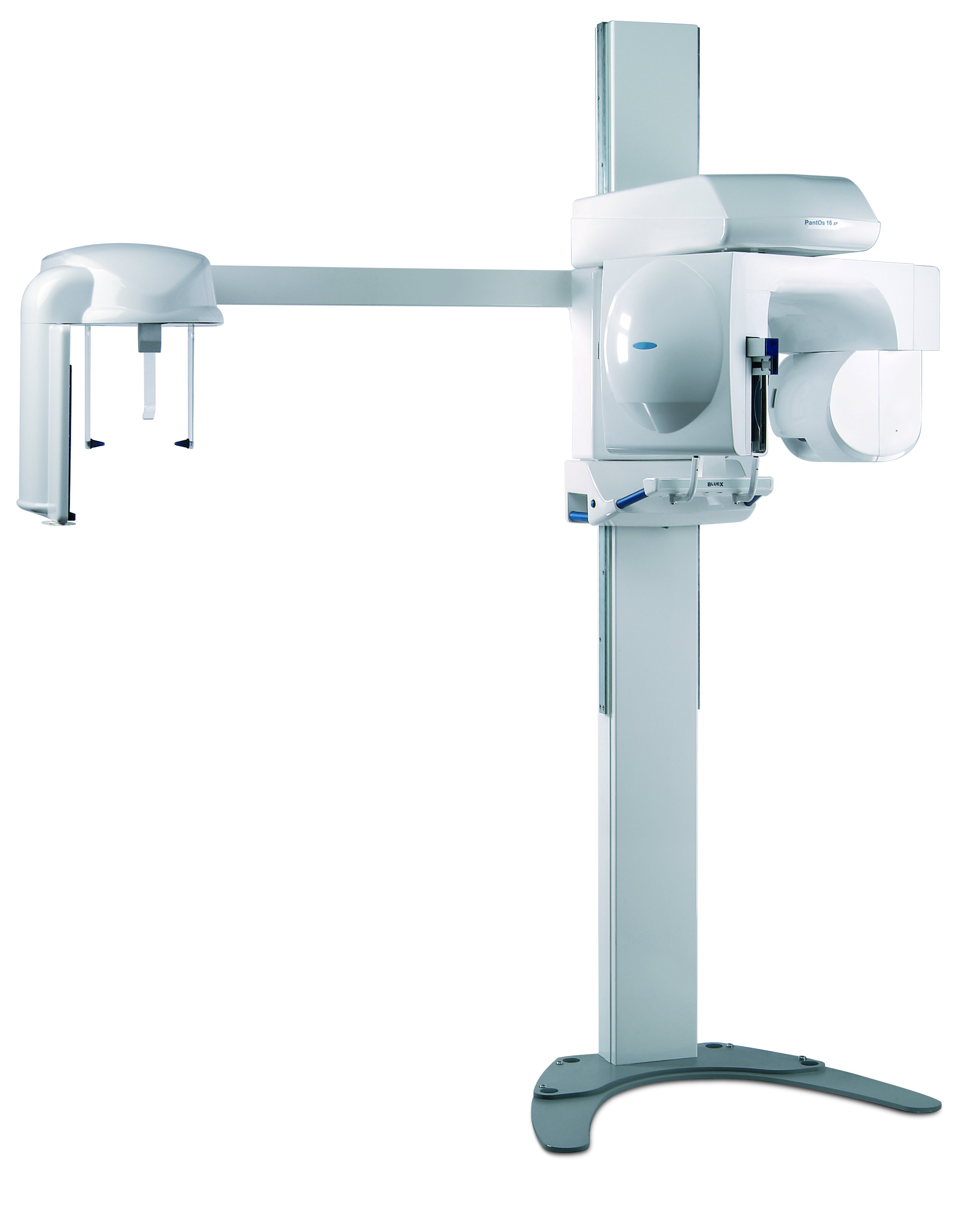

PantOs 16 XP Pan/Ceph
(Analog)
-Constant potential high-frequency
multi-pulse X-ray generator.
-Focal spot 0.5 IEC336
-Technique factors: anodic voltage from 61
to 85kV, anodic current from 4 to 10mA,
maximum exposure time 15sec.
-Source image distance: 51cm (Pan)
165cm (Ceph)
-Panoramic examinations: Adult, Child,
Left-Side Dentition, Right-Side Dentition,
Anterior Dentition, Temporo-Mandibular
Joint (TMJ) Open/Closed Mouth, Maxillary
Sinus
-Cephalometric examinations:
Antero-Posterior, Latero-Lateral, Wrist
-Pan Cassette size: 15 x 30cm
-Ceph Cassette size: 18 x 24cm 8in. x 10in.
(Analog)
-Constant potential high-frequency
multi-pulse X-ray generator.
-Focal spot 0.5 IEC336
-Technique factors: anodic voltage from 61
to 85kV, anodic current from 4 to 10mA,
maximum exposure time 15sec.
-Source image distance: 51cm (Pan)
165cm (Ceph)
-Panoramic examinations: Adult, Child,
Left-Side Dentition, Right-Side Dentition,
Anterior Dentition, Temporo-Mandibular
Joint (TMJ) Open/Closed Mouth, Maxillary
Sinus
-Cephalometric examinations:
Antero-Posterior, Latero-Lateral, Wrist
-Pan Cassette size: 15 x 30cm
-Ceph Cassette size: 18 x 24cm 8in. x 10in.

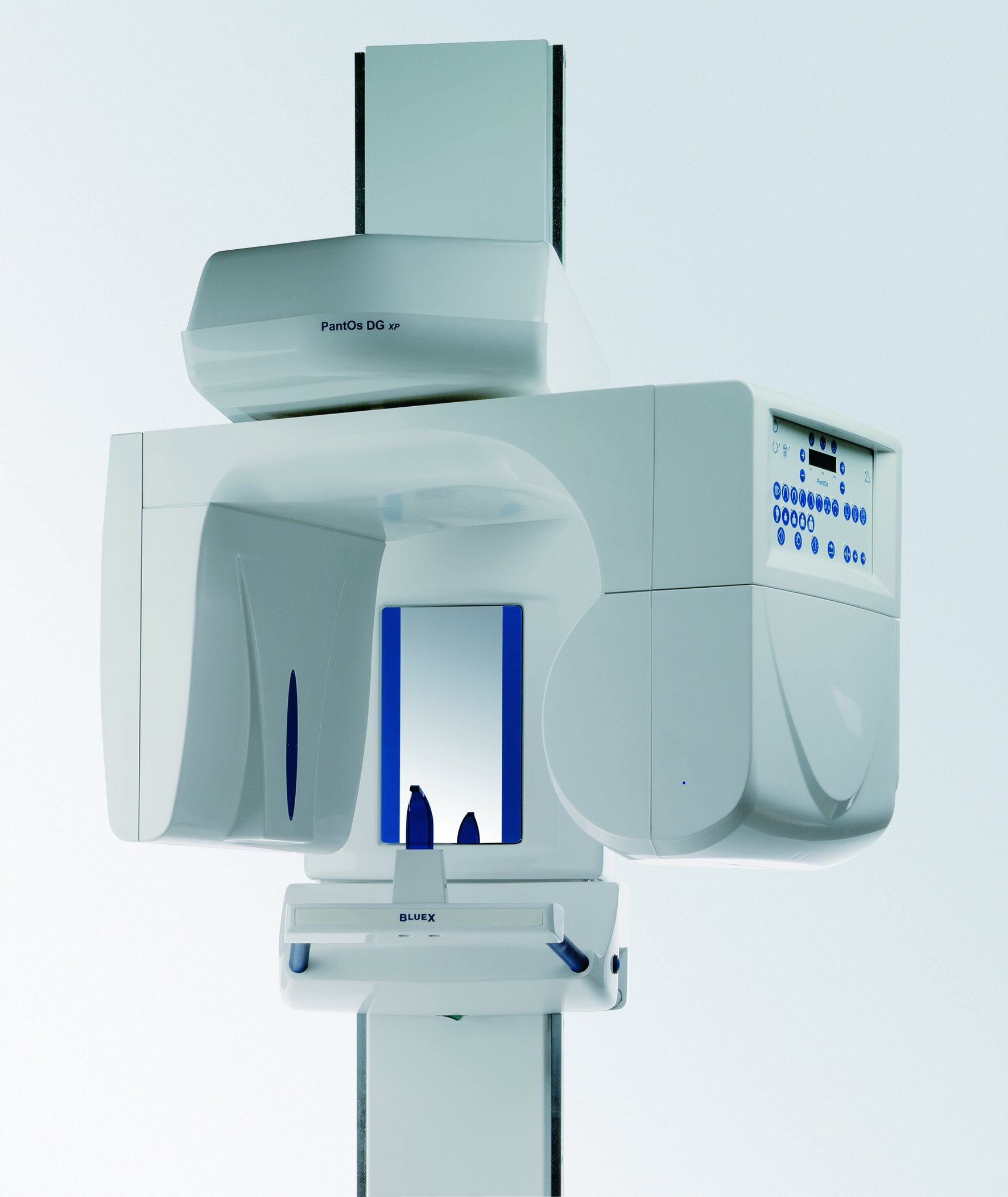

PantOs DG XP
(Digital)
-Constant potential high-frequency
multi-pulse X-ray generator.
-Focal spot 0.5 IEC336
-Technique factors: anodic voltage from 61
to 85kV, anodic current from 4 to 10mA,
maximum exposure time 15sec.
-Source image distance 51cm
-Panoramic examinations: Adult, Child,
Left-Side Dentition, Right-Side Dentition,
Anterior Dentition, Temporo-Mandibular
Joint (TMJ) Open/Closed Mouth, Maxillary
Sinus
(Digital)
-Constant potential high-frequency
multi-pulse X-ray generator.
-Focal spot 0.5 IEC336
-Technique factors: anodic voltage from 61
to 85kV, anodic current from 4 to 10mA,
maximum exposure time 15sec.
-Source image distance 51cm
-Panoramic examinations: Adult, Child,
Left-Side Dentition, Right-Side Dentition,
Anterior Dentition, Temporo-Mandibular
Joint (TMJ) Open/Closed Mouth, Maxillary
Sinus
Digital Receptor
-CCD sensor
-Spatial resolution > 5 line pairs per mm
-Acquisition dynamics on 12 levels
-Acquisition area equivalent to 15 x 30cm
-Computer Interface via PCI card
-Application program OrisWin Pan for
Windows XP/NT/2000
-Image size as per acquisition 3200 x 1600
pixels
-Storage format BMP or JPG
-CCD sensor
-Spatial resolution > 5 line pairs per mm
-Acquisition dynamics on 12 levels
-Acquisition area equivalent to 15 x 30cm
-Computer Interface via PCI card
-Application program OrisWin Pan for
Windows XP/NT/2000
-Image size as per acquisition 3200 x 1600
pixels
-Storage format BMP or JPG
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| PantOs XP |
| CONTROL |
Each symbol comes preset for
immediate usage. There are seven
types of panoramic examinations
provided, along with four patient size's
(three extra for ceph). These
technique factors, automatically
provided, can be adjusted if desired.
immediate usage. There are seven
types of panoramic examinations
provided, along with four patient size's
(three extra for ceph). These
technique factors, automatically
provided, can be adjusted if desired.
| OPERATIONS |
Precision alignment is done by
means of 3 laser beams and a
motorized system for carriage
translation.
Positioning tools include a bite block,
an auxiliary chin rest, and temporal
resting bars.
A pushbutton, controlled magnetically,
unlocks the brakes of the vertical
movement.
means of 3 laser beams and a
motorized system for carriage
translation.
Positioning tools include a bite block,
an auxiliary chin rest, and temporal
resting bars.
A pushbutton, controlled magnetically,
unlocks the brakes of the vertical
movement.
