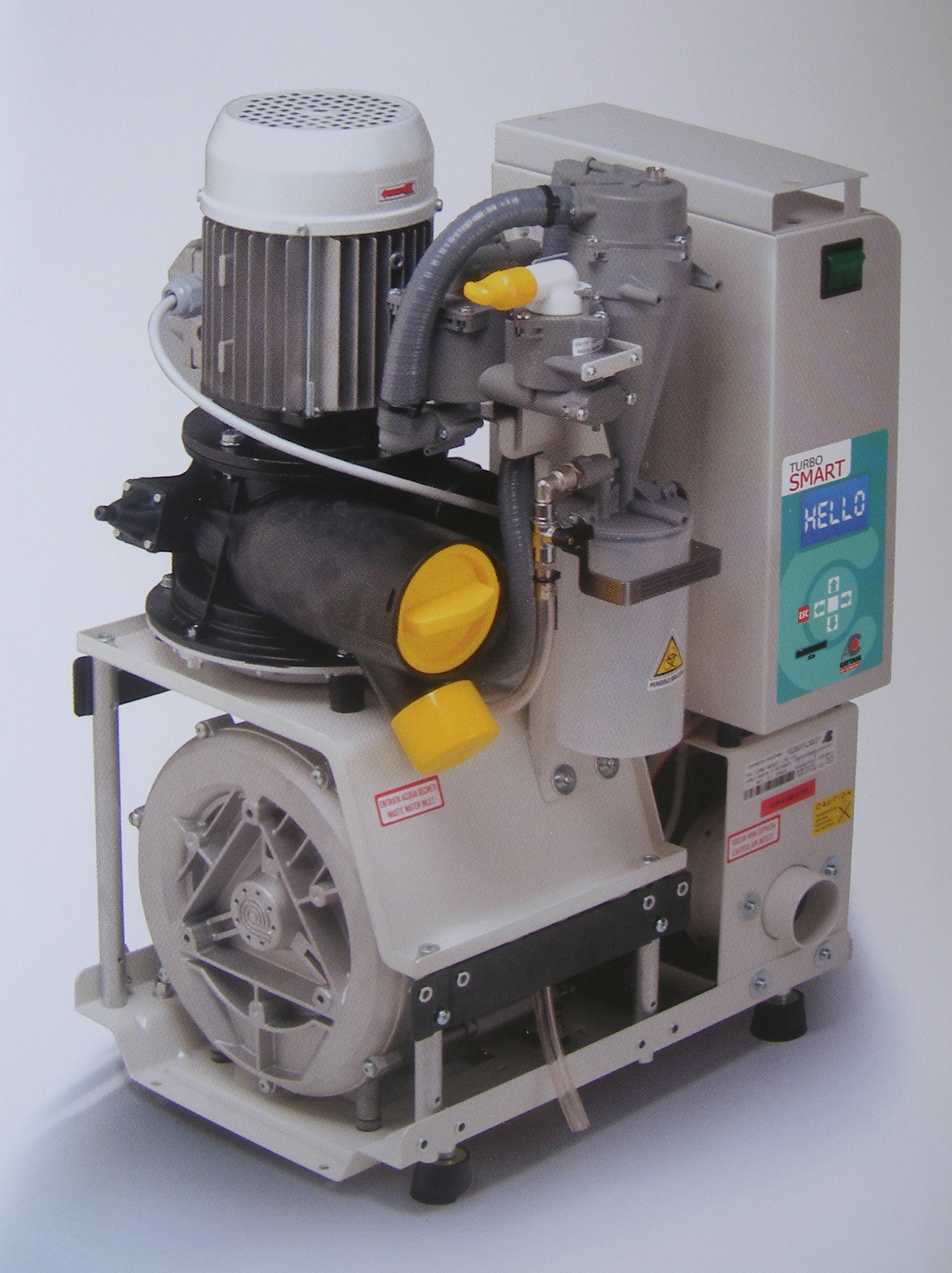

Turbo Smart
Finally, a clever aspirator that communicates with the operator!

Turbo Smart reacts automatically to any functional problem or to any hazard to the
machine's integrity.  It performs like a small and large machine at the same time:  small
when it is used by one or two operators, and large when it is upgraded to fit an
for the suction is low.

In the event of a functional problem, the
auto-protection feature electronically adjusts the
unit's operation, resolving the problem without
damaging the machine.  The suction unit informs
the operator of:  current absorption, machine
temperature, maintenance, vacuum head,
condenser's capacity, room temperature, amalgam
level, and running hours.

High Performance

Turbo Smart can be installed in parallel without
peripheral units and without connectors.

It is possible to upgrade the Turbo Smart model A
(2 surgeries) to model B (4 surgeries) by entering a
password into the machine, either before or anytime after the installation of the unit.
The operator can regulate the head value according to their variable needs.

Consequently, with Turbo Smart the dealer can count on one single aspirator  adapting
to all customers' requirements, while the dentist is sure to receive the aspirator which
meets their needs.
TECHNICAL DATA
TURBO SMART VERSION A (2 SURGERIES)
  • Maximum operating head for continuous service 2000mm H2O.
  • Maximum flow 1400 l/min
  • Suggested for 2 surgeries
  • Sound pressure level with canalized air 68.2 dB (A)
  • W=15 3/4"  D=14"  H=25 5/8"
  • Net Weight = 80lbs  Gross Weight = 100lbs


TURBO SMART VERSION B (3-4 SURGERIES)
  • Output Power 1.5kW - 9 A
  • Maximum operating head for continuous service 2000mm H2O.
  • Maximum flow 1700 l/min
  • Suggested for 3-4 surgeries
  • Sound pressure level with canalized air 69.6 dB (A)
  • W=15 3/4"  D=14"  H=25 5/8"
  • Net Weight = 80lbs  Gross Weight = 100lbs
